Description

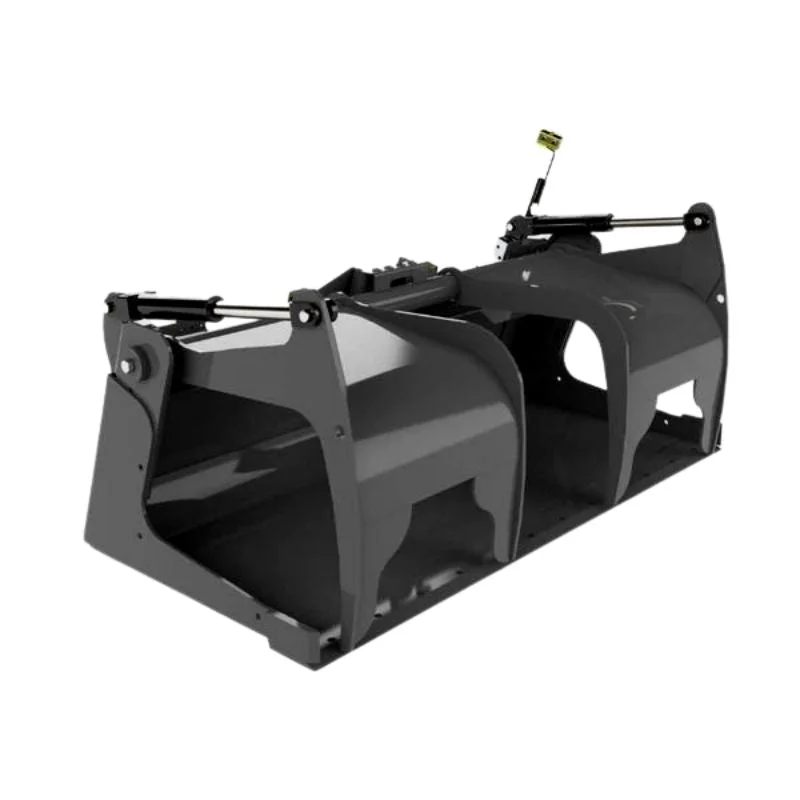

Extended Lip Grapple Bucket
This Extended Lip Grapple Bucket from Berlon has claws that operate independently to accommodate various material shapes and sizes. They are commonly used for demolition, scrap yard, and other general clean-up applications. The bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*. It is made in the USA with guaranteed quality.
FEATURES
- 3/16” thick steel body
- 3/4” x 6” weld-on cutting edge with holes
- Cylinders – 3,000 lb., 2.5” bore
- Extended floor for greater cutting edge visibility
- Radius kick-out plate for added strength & easy clean-out
- Reinforcement tube across back of the bucket
- Dual, independent claws
- Scrap ends, hose & couplers, hose saver, and needle valve included
- Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*
SPECIFICATIONS
Includes MPUF-1 Universal Mounting plate. Other mounts are also available. Call for Pricing.
HD Package includes MPUF-1HD Universal Mounting plate and double reinforcement kit. Recommended for track machines and others over 75HP.
DOWNLOADS
- Owners Manual
OPTIONS
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Bolt-On HD Teeth (Factory Installed Only)
- Bolt-On Tooth Bar
- Bolt-On Tooth Bar, Over Bolt-On Edge
- Bolt-On Ends
