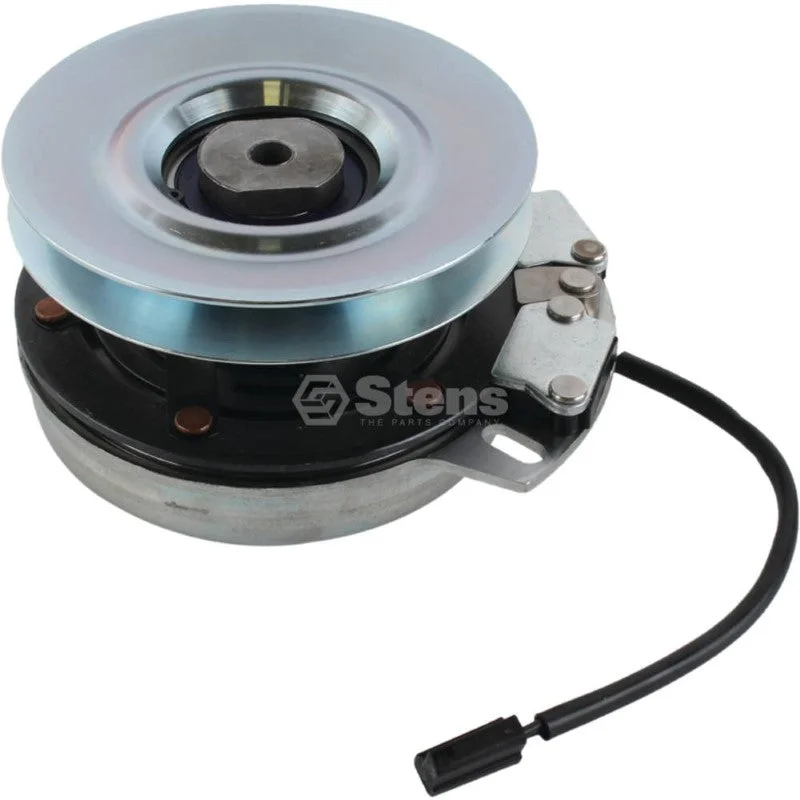

Xtreme PTO Clutch MTD 917-04552A Stens X0390

Description

Xtreme PTO Clutch
MTD 917-04552A

REPLACES OEM
Bolens 717-04552, 717-04552A, 917-04552, 917-04552A
Craftsman 717-04552, 717-04552A, 917-04552, 917-04552A
Cub Cadet 717-04552, 717-04552A, 917-04552, 917-04552A
Huskee 717-04552, 717-04552A, 917-04552, 917-04552A
MTD 717-04552, 717-04552A, 917-04552, 917-04552A
Troy-Bilt 717-04552, 717-04552A, 917-04552, 917-04552A
Warner 5219-98
White 717-04552, 717-04552A, 917-04552, 917-04552A

FITS MODELS
Cub Cadet FMZ50, LTX1042, LTX1045, LTX1046, LTX1050, RZT50, RZT54 and Z Force S series
MTD FMZ50, LTX1042, LTX1045, LTX1046, LTX1050, RZT50, RZT54 and Z Force S series
Troy-Bilt Mustang XP, 2010-2012

SPECS
Cool Coil Technology
Does not fit all applications – Verify part number by referring to model specifications
High Temperature Bearing Upgrade
Replaceable Pulley Bearing
Super Smooth “Xtreme Precision” Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Upgraded to 3 Layer “Xtreme TOUGH” Integrated, Water Tight Wire Harness

Belt Width: 1/2″ or 5/8″
ID: 1″
Pulley Diameter: 6″
Rotation Direction: Counter Clockwise
